› 8-ch simultaneous B-mount fast charging
› DC33.6V, 3A, 100W for ≥160Wh batteries
› DC33.6V, 1.3A, 44W for <160Wh batteries
› 2× 3.5-inch color LCD info display
› Battery cycle times display
› Large LED charging indicators
› Wall mounting or 19-inch rack install

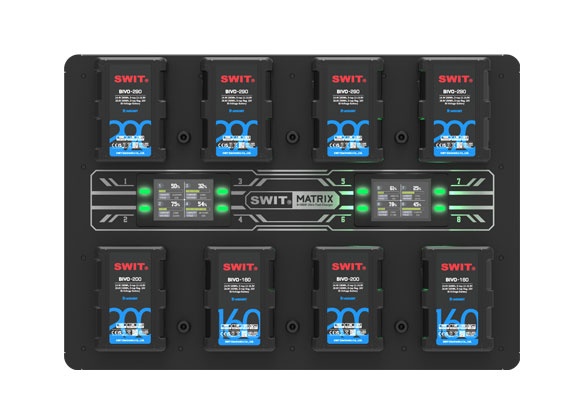

8x100W Ultra Fast Wall Charger

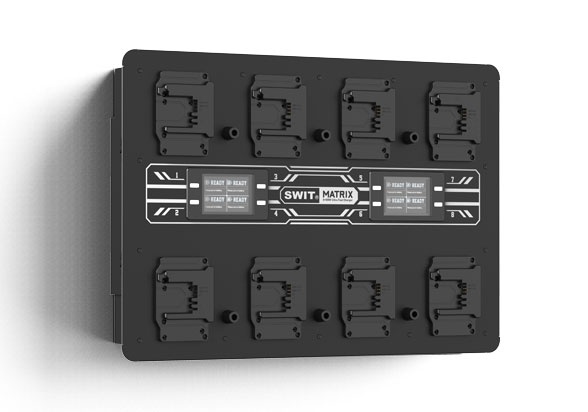

MATRIX-B8 is an 8-ch simultaneous B-mount wall charger with 33.6V 100W ultra fast charging speed each channel, charging SWIT HB-A290B, BIVO series, and compatible with other B-mount batteries that support 33.6V charging voltage like CoreSWX.
Charging Time Chart

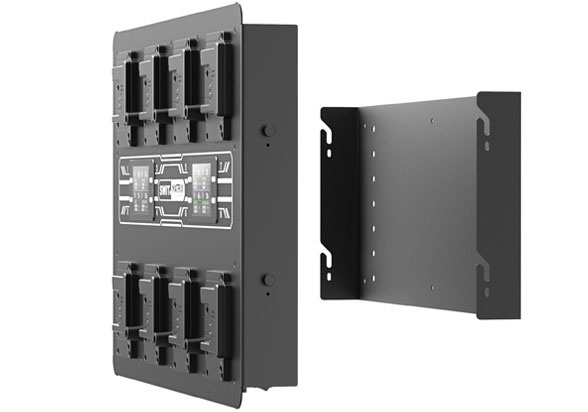

Flexible Wall Mounting Plate
MATRIX-B8 provides with a wall mounting plate on the backside, to be screwed onto the wall, or mounting to standard 19-inch rack bracket.
You can even install the mounting plate onto storage
rack or DIT cart.

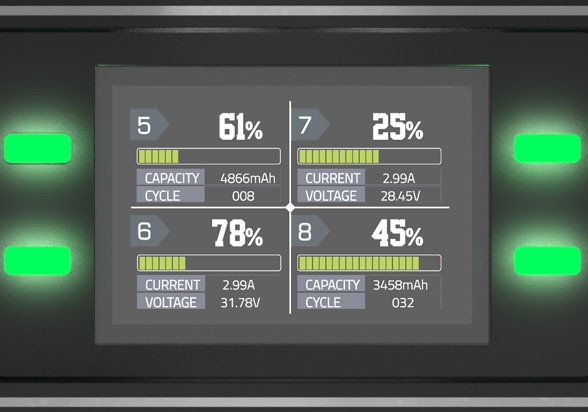

3.5-inch Color LCD and Indicators
MATRIX-B8 provides 2x 3.5-inch color LCD to display charging progress, charging current, voltage, battery cycle times for each channel.You can also check the charging status by large charging indicators from a distance.
Power | Max 900W |
Input | AC100V-240V 50/60Hz |
Output | DC 33.6V, 3A 100Wx8 (≥160Wh B-mount batteries) DC 33.6V, 1.3A 44W×8 (<160Wh B-mount batteries) |
Applicable battery | B-mount battery |
Dimensions | 630×436×89mm |
Net weight | Net 10.6kg; With package 15.5kg |
MSRP
MSRP
MSRP
-

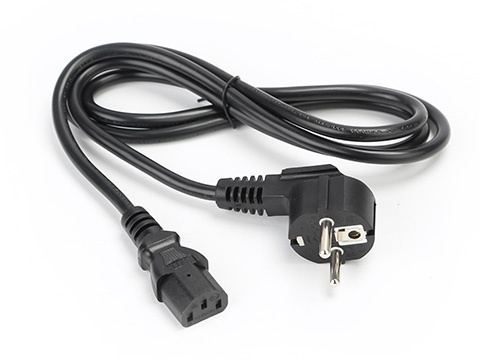

AC power cable
-

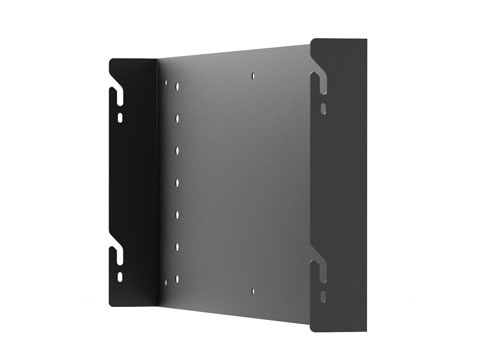

Install Plate
-
HB-A290B
290Wh 28.8V B-mount Battery Pack
ALEXA35/ALEXA 265/Blackmagic URSA Cine battery, 250W/10A high load, D-tap 16V x2, USB-C 60W in&out, OLED power info
-
PC-P461B
4x100W Super Fast B-mount Charger
3h50m fully charge 4x 290Wh batteries, 3.5-inch color LCD screen
-
BIVO-160
160Wh Bi-voltage B-mount Battery Pack
14.4V/28.8V auto switch, ALEXA35/ALEXA 265/Blackmagic URSA Cine battery, 200W high load, D-tap 16V out
-
BIVO-200
196Wh Bi-voltage B-mount Battery Pack
14.4V/28.8V auto switch, ALEXA35/ALEXA 265/Blackmagic URSA Cine battery, 200W high load, D-tap 16V out
-
BIVO-290
290Wh Bi-voltage B-mount Battery Pack
14.4V/28.8V auto switch, ALEXA35/ALEXA 265/Blackmagic URSA Cine battery, 250W high load, D-tap 16V out
-
BIVO-98
98Wh Bi-voltage B-mount Battery Pack
14.4V/28.8V auto switch, ALEXA35/ALEXA 265/Blackmagic URSA Cine battery, airplane boarding, D-tap 16V out
1. Warranty Period
We provide 2 years conditional warranty for battery chargers.
2. Exclusions from Warranty Coverage
The following damages, malfunctions, failures, or safety incidents are not covered under warranty, and SWIT shall bear no liability therefor:
(1) Non-Compliant Charging Objects
Use of the charger to charge non-original SWIT batteries or uncertified third-party batteries.
(2) Non-Compliant Power Supply and Operation
Use of mismatched power supply, input voltage exceeding the rated range of AC 100V–240V, power input exceeding the rated capacity, prolonged overcharging, or operation under no-load conditions.
(3) Non-Compliance with User Manual
Operation, maintenance, or storage not in accordance with the instructions set forth in the User Manual; unauthorized disassembly or repair; failure to operate the charger in accordance with the prescribed procedures, resulting in damage or safety hazards.
(4) Misuse and Physical Damage
Unauthorized modification, dropping, impact, collision, water immersion, exposure to high temperatures or humid environments, or any other non-normal use not in accordance with the product's intended design.
(5) Use of Damaged or Defective Charger
Continued use of a charger that is damaged, malfunctioning, or exhibiting abnormal overheating without prompt discontinuation.
(6) Force Majeure and Human Factors
Damage caused by irresistible factors (including but not limited to earthquake, fire, or lightning) or human factors.
(7) Non-Quality Defects
Any damage or breakdown not caused by the product's design, workmanship, or manufacturing quality.
(8) Liability Disclaimer
All risks and losses arising from non-compliant use shall be borne entirely by the user.
