› 576pcs ultra bright long-life LEDs
› SMD Surface mounted LED technology
› 62° half peak wide beam angle
› 2700K-6500K continuously adjustable
› 100W power, 3400Lux @ 1meter
› No fan, no noise
› 0-100% flick-free dimming
› Color rendering CRI 98, TLCI 99, SSI(D55) 73
› DMX512 controlled color and dimmer
› LCD display color and dimmer value
› PowerCON TRUE1 AC in and loop out
› 4-pin XLR DC 11-17V input

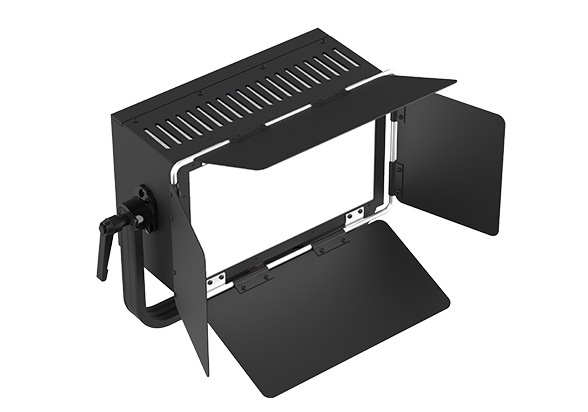

› 4-leaf metal barn doors and Yoke bracket

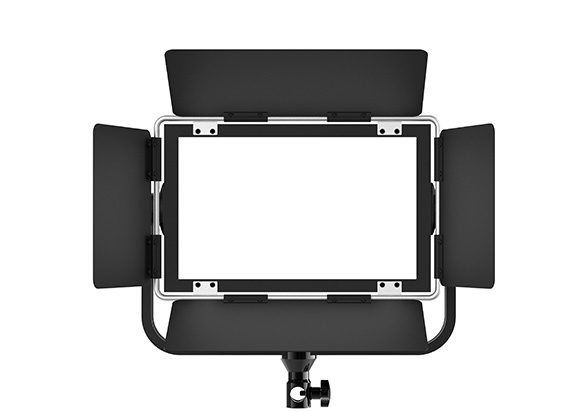

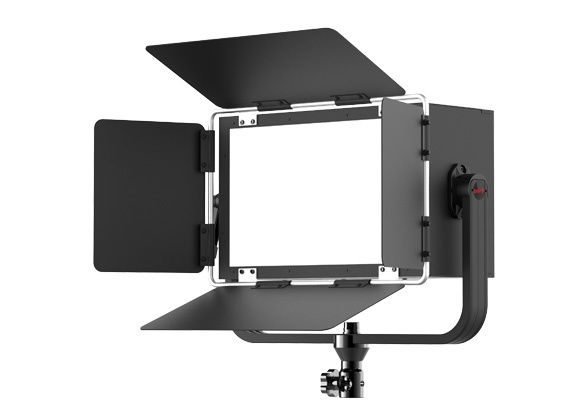

Mini Size 100W LED Panel
CL-M100D is an 100W Bi-color SMD LED panel
light of 1: 1/2 mini size designed, high intensity and
fanless, for broadcast studio, live entertainment,
theater, film applications, especially the low ceiling
space setup.
576pcs Surface Mounted LEDs
CL-M100D adopts 576pcs SMD LEDs, featured:
(1) higher uniformity of illuminance;
(2) wider beam angle;
(3) higher color rendering index;
(4) Softer and Brighter;
(5) longer life time,
an ideal light source for Broadcast studios, green keyer,
live streaming etc.
3400 Lux @ 1 meter
CL-M100D provides 100W light output, 3400Lux luminance at 1
meter distance, 62° half-peak wide beam angle, supports 0 to
100% PWM digital dimming, smoothly and non-flickering.
IEC 62471 Photobiological Safe Certificated
The light has been tested and certificated as “Exempt - No Photobiological Hazard” by the IEC 62471:2008 standard, without the risk of ultraviolet radiation, high energy blue light, flicking. In specific locations such as churches, museums, and ancient buildings, using this lighting fixture can effectively prevent the fading and peeling of mural artifacts, thereby protecting cultural heritage.
No Fan, No Noise
The large size fin consender inside
CL-M100D ensures 100W high bright
output within such a small size housing,
no fan, no noise, to provide a silent video
production environment.
2700K-6500K Continuously Adjustment
CL-M100D consists of 100W of 2700K LED and 100W of 6500K LED, and
outputs 100W power at any color temperature from 2700K to 6500K.
CRI 98; TLCI 99
CL-M100D adopts high end surface mounted
LEDs with super high Color Rendering Index
(CRI) Ra 98, and Television Lighting Consistency
Index (TLCI) 99. Objects will keep their original
colors exactly under the light.

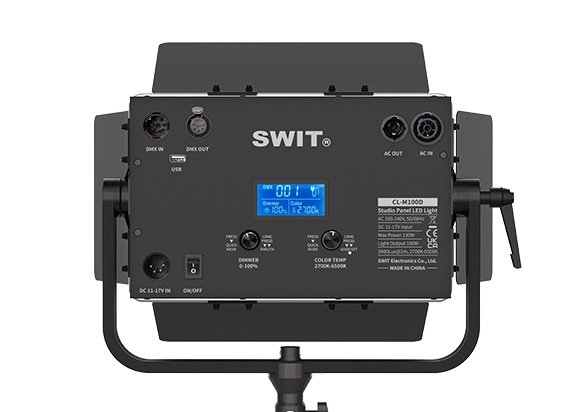

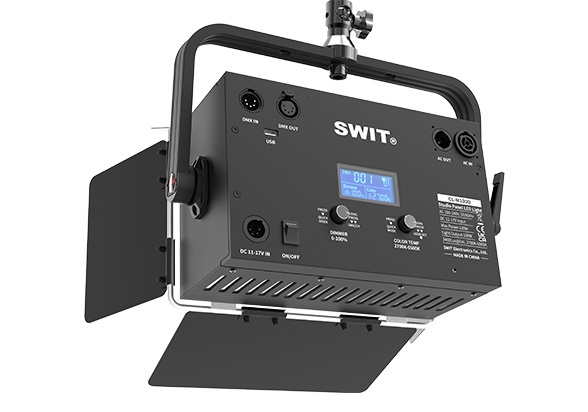

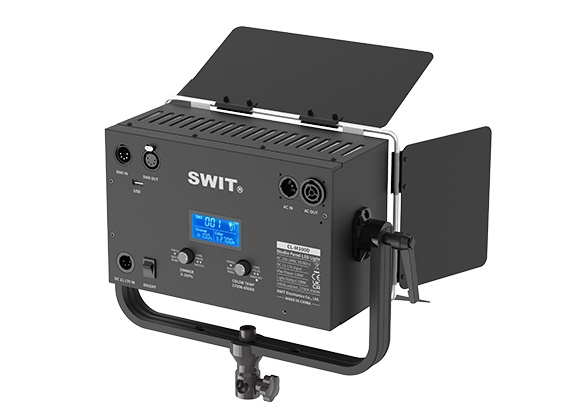

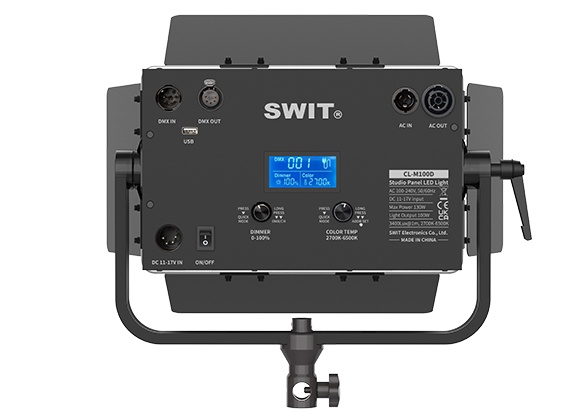

Control Info Display
The rear LCD screen can display dimmer percentage,
color temperature, DMX address, Group channel (CH),
and power indicators.
Long press color temp knob to set DMX address, and
long press dimmer knob to switch between DMX
consoler mode and Group interactive control mode.
5-pin DMX512 IN & OUT
CL-M100D provides 5-pin XLR DMX512 in & out,
and a 5V USB-A port to power the wireless DMX
receivers.
The DMX address n= dimmer, n+1=color temp
PowerCON TRUE1 AC IN & OUT
CL-M100D adopts PowerCON TRUE1 AC connectors, and supports AC loop output to the next lights, for convenient studio installation.
The standard package includes a PowerCON AC cable, and the loop cable PA-LC20 is for optional purchase, 2 meters length, 16A load, will loop more than 25x CL-M100D lights under 220V AC voltage, and 13x CL-M100D lights under 110V voltage.
11-17V DC Input
With optional battery plate clamps and D-tap cable, you can
power the CL-M100D light by V-mount or Gold mount batteries
via the 4-pin XLR DC in socket.

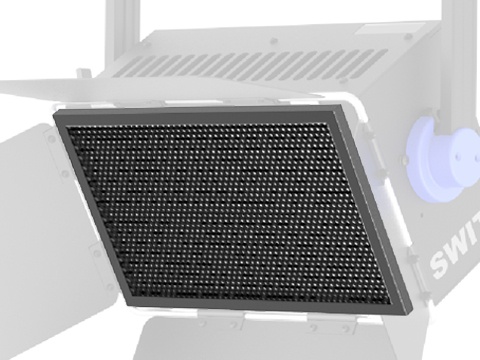

Optional Honeycomb
CL-M100D provides a 45° honeycomb
for optional purchase, could be installed
together with the barndoors.
Part number: LA-GM100.
LED | 576pcs SMD LEDs |
Illuminance | 3400Lux @ 1m |
Beam angle | 62° half peak |
Color Temperature | 2700K ～ 6500K |
CRI | 98 |
TLCI | 99 |
SSI (D55) | 73 |
Power | Max 130W, light output 100W |
AC input & output | PowerCON TRUE1 AC 100-240V 50/60Hz |
DC input | 4-pin XLR DC11V～17V |
Dimension | 275×173×130mm; Shipping carton 455×200×370mm |
Lighting area | 245×146mm |
weight | Net 5.6kg; With package 7.45kg |
MSRP
MSRP
MSRP
-

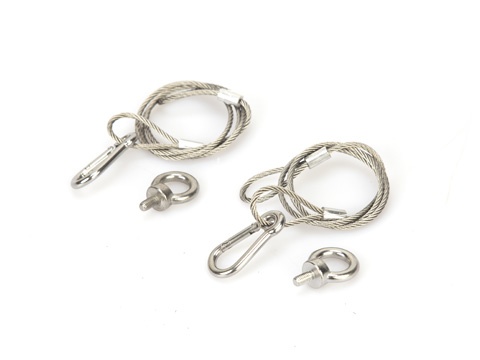

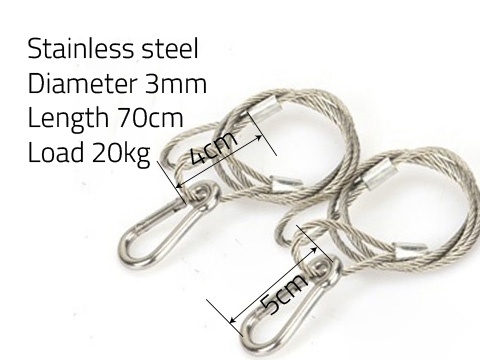

Safety rope x2
-

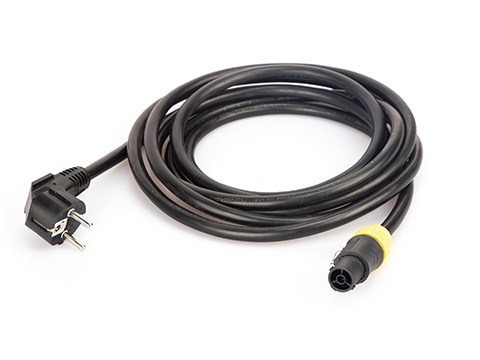

PowerCON TRUE1 AC cable
-

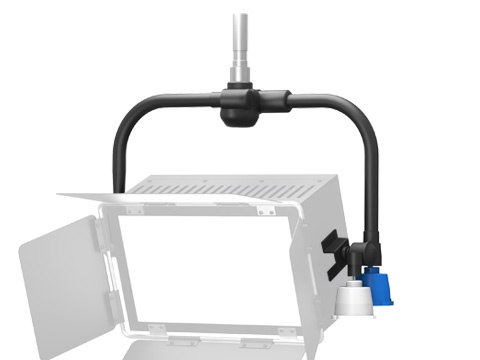

LA-POM100
2 control cups for pan and tilt, 5/8" baby-pin female & 1-1/8" junior pin male head. Compatible with CL-M100D and CL-M100C -

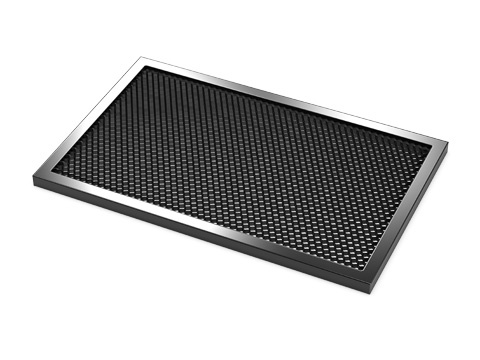

LA-GM100
45° honeycomb for CL-M100D and CL-M100C, install by 2x screws, could using together with barndoors. -

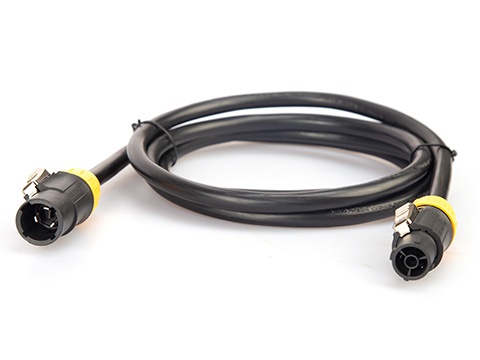

PA-LC20
PowerCON TRUE1 loop out cable, 2meters, 16A load, AC 220V: Max 25x CL-M100D looped AC 110V: Max 13x CL-M100D looped -

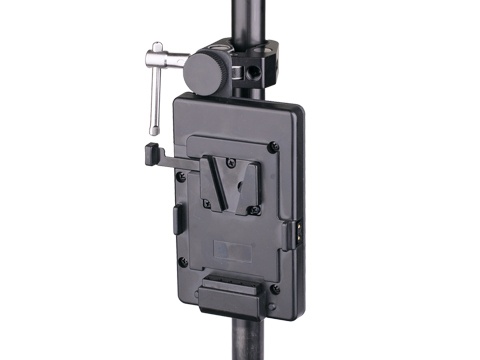

S-7200S
V-mount Plate With Clamp, to install on 25-45mm diameter C-stand / Light tripod, with 1x D-tap socket to output battery DC voltage. -

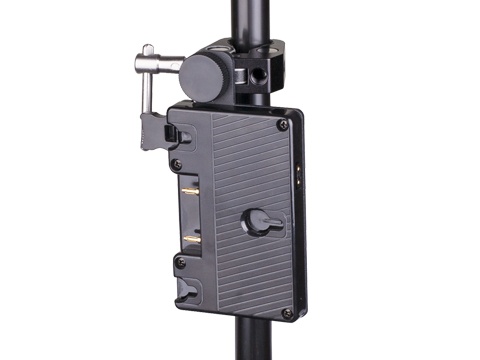

S-7200A
Gold mount plate with Clamp, to install on 25-45mm diameter C-stand / Light tripod, with 1xD-tap socket to output battery DC voltage. -

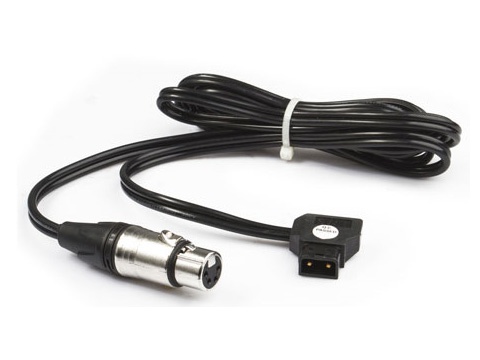

S-7101
Pluged into D-tap socket and output DC via 4-pin XLR connector
-

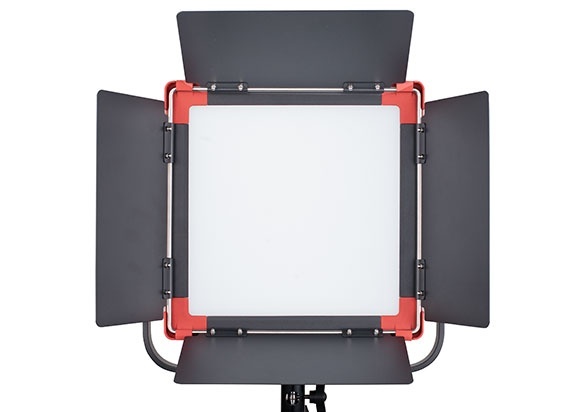

PL-S150D
150W Bi-color Studio SMD LED Light
5500Lux @ 1m high intensity, Smooth Exponential dimming curve, CRI 97 TLCI 99 SSI 73
