› Tiny V-mount battery, Pocket fit
› 146Wh/10.1Ah fly-friendly capacity
› 150W/12A constant high load
› 1x D-tap output & charging input
› 1x USB 5V/2A output

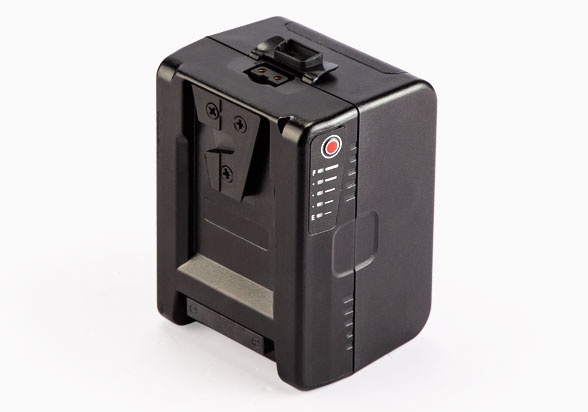

› 5-step LED power indicator
› Power info for both SONY & RED
› Wire-Free internal technic
› Multiple circuit protections

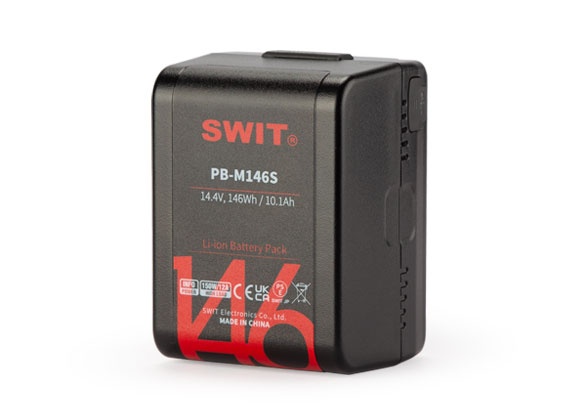

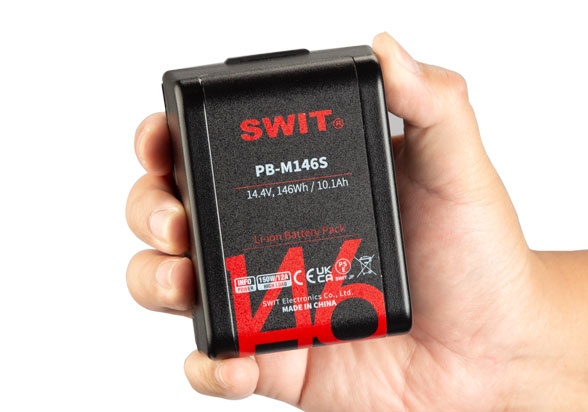

Pocket V-mount battery
As a new member of PB-M series Pocket V-mount
batteries, the PB-M146S provides 146Wh larger
capacity to extend run time, and still tiny size for
convenient carrying.

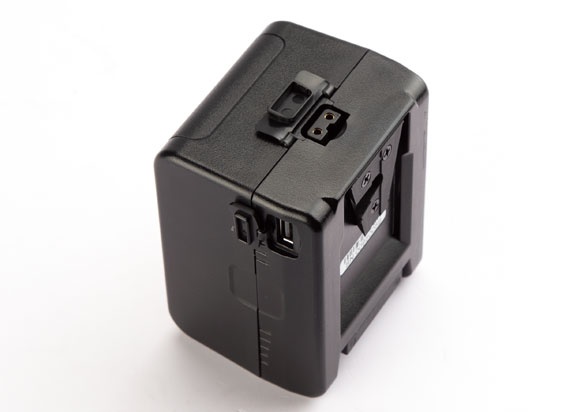

146Wh, D-tap and USB
PB-M146S has 14.4V nominal voltage, 146Wh
large capacity, and 5-step LED power indicator,
built-in D-tap DC output & charging input, and
USB-A 5V/2A power out.
The constant load is 150W, 12A.
Hot-Swap Adaptor
You can use 2x PB-M146S hot-swapable on
cameras, by the Hot-swap Adaptor KA-M20S,
to get one-by-one hot swap uninterrupted
power, and equivalent to a standard size
V-mount battery.
50W/3A Fast Charging
PB-M146S can be charged by all standard V-mount chargers and D-tap chargers.
The following chargers are recommended:
1. S-3822S, Portable 2-ch Simultaneous Charger
Charge 2x PB-M146S: Approx. 3hrs 45min
2. PC-U130B2, Ultra-Portable Dual D-tap head charger
Charge 1x PB-M146S: Approx. 3hrs 45min
Charge 2x PB-M146S: Approx. 6 hours
Family Models
The PB-M pocket V-mount series have 45Wh, 98Wh and 146Wh, with the
same output sockets and the same bottom size but different thickness.
Wire-Free Internal Tech
PB-M146S has innovative “Wire-Free” internal technic. All the cells, D-tap, USB, power indicator devices
are directly soldered onto PCB, no connecting wires,
to reduce internal resistance effectively, and make the
circuit stable, safe, and reliable.
Ultra Low Standby Power
Holds Power for Years Without Losing Charge
Ordinary batteries can be damaged after
long-term storage due to complete power
drainage.
SWIT batteries adopt a unique low-power
design that could hold the charge for several
years without losing power. There is no need
for regular charge-discharge maintenance,
just effortless, reliable storage when you
need it.
Battery plate | V-mount |
Nominal voltage | 14.4V |
Capacity | 146Wh, 10.1Ah |
Power output | In total: 150W |
Electrodes: 150W,12A | |
| USB:10W, 5V/2A | |
| D-tap: 100W / 10A | |
Charging input | 16.8V 3A (Max) |
| Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C（Capacity and Max Load may decrease when operating below 0°） |
Dimension | 100×74×63.7mm |
Net weight | Net 0.72kg; With package0.75kg |
MSRP
MSRP
MSRP
1. Warranty Period
We provide 2 years conditional warranty for batteries.
2. Exclusions from Warranty Coverage
The following damages, malfunctions, failures, or safety incidents are not covered under warranty, and SWIT shall bear no liability therefor:
(1) Non-Compliance with User Manual
Operation, maintenance, or storage not in accordance with the instructions set forth in the User Manual; unauthorized disassembly, modification, or repair.
(2) Non-Compliant Charging Equipment and Practices
Use of non-original SWIT chargers or uncertified third-party charging accessories;
Use of third-party USB-C chargers without compliant PD protocols;
Use of third-party D-tap charger of reversed polarity connections and cause any damage.
This battery doesn't support charging via D-tap, use any D-tap charger to charge the battery and cause any damage.
(3) Misuse and Physical Damage
Compression, puncture, dropping, impact, collision, water immersion, exposure to high temperatures or direct sunlight, or any other non-normal use not in accordance with the product's intended design.
(4) Use of Damaged or Defective Battery
Continued use of a battery that is damaged, leaking, or exhibiting abnormal overheating without prompt discontinuation.
(5) Natural Capacity Degradation
Reduction in battery capacity resulting from the natural aging process after a certain number of charge/discharge cycles.
(6) Improper Storage and Maintenance
Damage caused by improper storage practices that lead to extended deep discharge or prolonged zero-charge state of the battery.
(7) Force Majeure and Human Factors
Damage caused by irresistible factors (including but not limited to earthquake, fire, or lightning) or human factors.
(8) Non-Quality Defects
Any damage or breakdown not caused by the product's design, workmanship, or manufacturing quality.
(9) Liability Disclaimer
All risks and losses arising from non-compliant use shall be borne entirely by the user.
