› 2-ch simultaneous charging
› DC 16.8V 3A 50W per channel
› Charge B-mount batteries with 14.4V mode
› Charge SWIT BIVO B-mount batteries
› Charge Bebob and Core B-mount batteries
› Support AC to 4-pin XLR output
› Light weight and portable

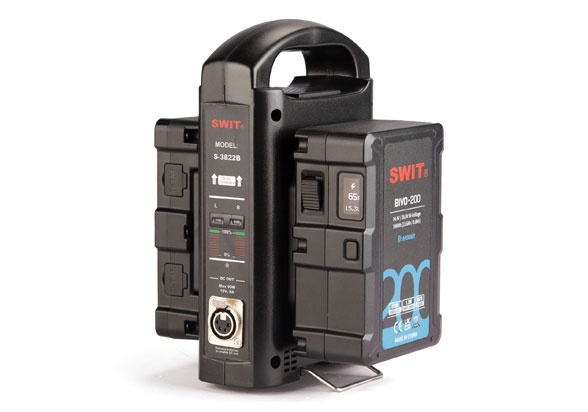

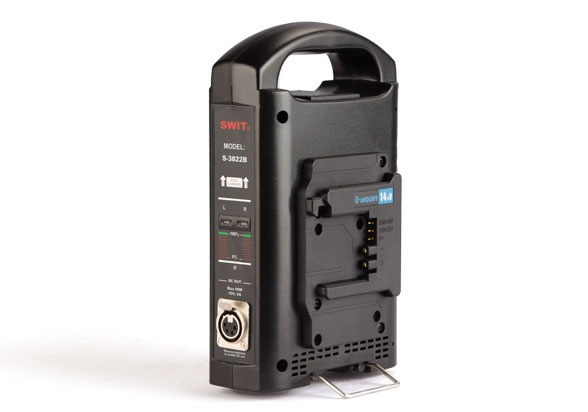

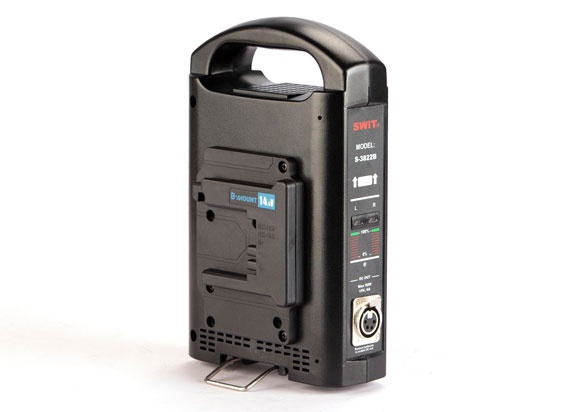

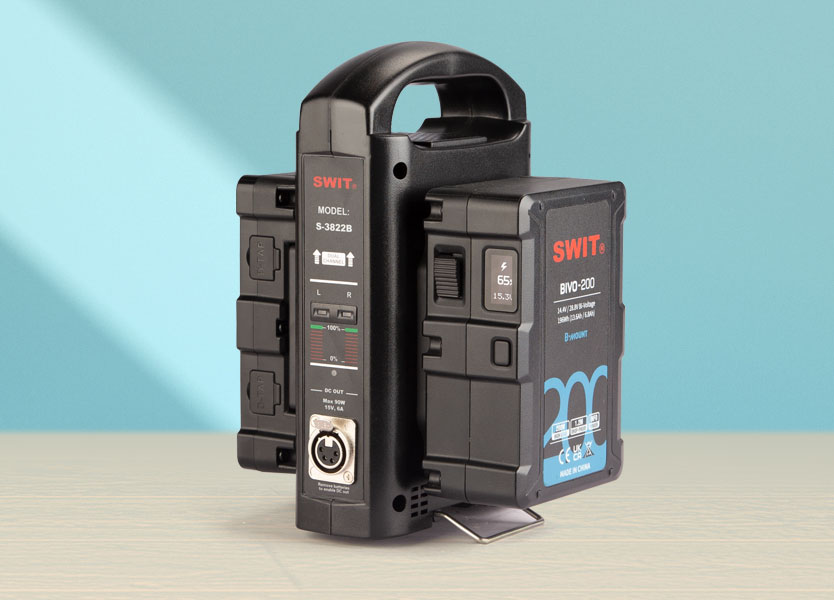

2-ch simultaneous B-mount Charger
S-3822B is a portable 2-ch simultaneous charger for B-mount
batteries. The charging output is DC 16.8V, 3A, 50W each channel.
14.4V Charging Mode
The S-3822B charges B-mount batteries at DC16.8V,
compatible with the B-mount batteries that support
14.4V nominal voltage mode, like SWIT BIVO series,
Bebob and CoreSWX Bi-voltage series.

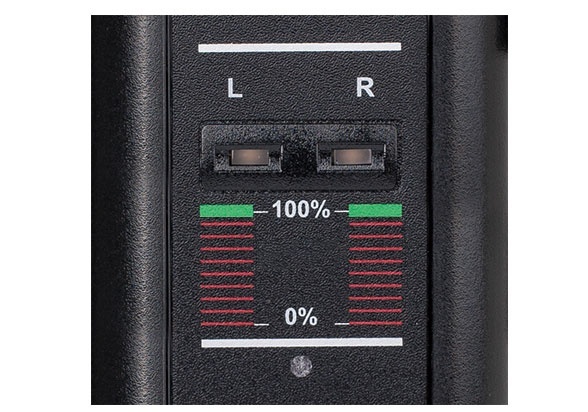

LED Charging Indicators
S-3822B has LED charging indicators on the front panel,
indicates the real time capacity of each channel by
different colors:
Red: the battery is under charging status
Green: the battery is fully charged
Red flash: Charging error, please check the battery
AC-DC Adapting Output
S-3822B has a 4-pin XLR female connector on the front
panel. Connected with SWIT S-7102 4-pin XLR female
to male cable (optional purchase), you can use the
charger as AC-DC adaptor of DC 15V, 6A, 90W output.
Input | 100～240VA, 50/60Hz |
Power consumption | Max 136W |
Charging output | DC 16.8V, 3A×2-ch |
Adapting output | DC 15V, 6A |
Working temperature | 0°C～+40°C |
Working humidity | 10%～90% |
Dimensions | 228mm×140mm×120mm |
Net weight | Net 1.0kg; With package 1.45kg |
