› Slim Size V-mount battery
› 98Wh/6.8Ah fly-friendly capacity
› 150W/12A constant high load, 200W peak
› 2×D-tap output & charging input
› 1x USB-A 5V/9V 2A 18W output
› 1x USB-C 65W output & 45W input
› 4-LED remaining power indicator
› Rear LED torch for dark environment
› Strong housing 1.2m drop-off proof
› Multiple circuit protections - overcharging, overdischarging, high temperature, low temperature, etc.
CINE V-Mount Battery
The CIMO series cine class V-mount batteries
featured high power load, 2× D-tap, 65W USB-C,
OLED power info display, battery life inspection
and 1.2m drop-off proof for professional
cinematographers.

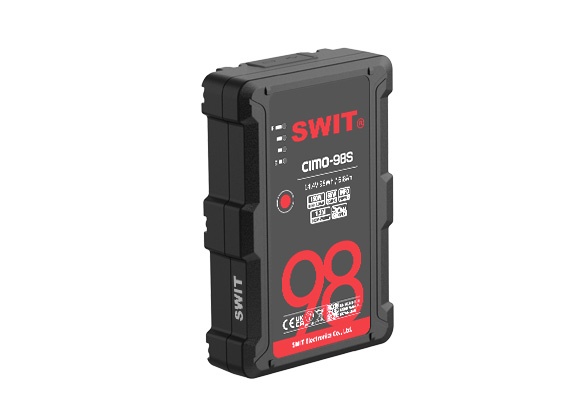

14.4V, 98Wh Slim Size
CIMO-98S consists of 8pcs ternary lithium cells,
14.4V nominal voltage, 98Wh, 6.8Ah fly friendly
capacity.
The ternary lithium cells provide higher energy
density, achieve higher capacity with a smaller
size, and excellent low-temperature
performance, capable of supplying power under
-20°C cold environment.
150W Constant / 200W Peak High Load Output
CIMO-98S outputs at least 150W/12A high load even
at 1% capacity (Peak load up to 200W), to drive high
power Cine cameras and on-camera devices together.
The high load cells will also ensure battery life
comparing to normal load batteries if long time full
load output.

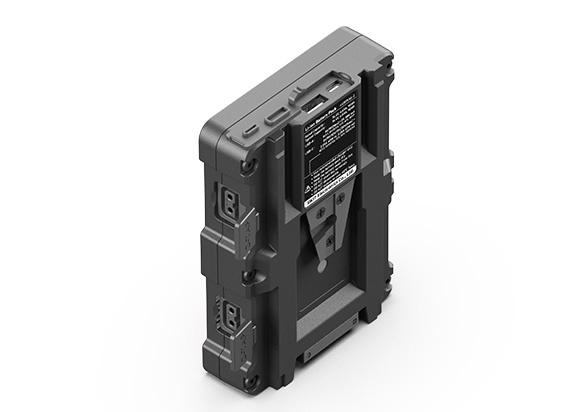

2×D-tap, USB-A & USB-C
CIMO-98S provides with
2x D-tap 150W in total;
1x USB-A 5V/9V 2A out;
1x USB-C 45W input and 65W output
for various on-camera devices.
USB-C 65W Output
The USB-C port of CIMO-98S outputs
5V/9V/12V/15V 3A, 20V(Max) 3.25A, 65W
high power for laptops and various smart
devices, with BC1.2, QC2.0/3.0, FCP, SCP,
PD2.0/3.0 universally compatible protocols.
USB-C 45W Charging Input
The battery can also be charged by USB-C charger
of PD2.0/3.0 ≥45W power, fully charged within 2.5
hours.
* Please note that<45W low power USB-C
chargers are unable to charge this battery.
LED Torch
You can double press the Power Check button to switch on
LED torch on the rear side of the battery, to help you to find
V-mount plate in dark production environment.
Double press the Power Check button again to switch the
light off, and it will be automatically switched off after 60
seconds.
1.2 meters Drop-off Proof
CIMO series batteries are dual housing designed
and can survive from 1.2 meters drop-off at any
angles, strong and reliable for filmmakers.
Ultra Low Standby Power
Holds Power for Years Without Losing Charge
Ordinary batteries can be damaged after
long-term storage due to complete power
drainage.
SWIT batteries adopt a unique low-power
design that could hold the charge for several
years without losing power. There is no need
for regular charge-discharge maintenance,
just effortless, reliable storage when you
need it.
Battery plate | V-mount |
Nominal voltage | 14.4V |
Capacity | 98Wh, 6.8Ah |
Power Load | 150W, 12A constant; 200W peak |
Power IN&OUT | Electrodes: 150W 12A out, 16.8V 4A(Max) in |
D-tap×2: (Plug 1×D-tap) 150W 12A out (Plug 2×D-tap) 150W 12A out in total Charging through D-tap: 16.8V 4A(Max) in | |
| USB-A: 5V/9V(Max) 2A out, 18W | |
USB-C out: 65W, 5V/9V/12V/15V/20V(Max)=3.25A BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP USB-C charging in: USB-C to C Charger Request - PD2.0/3.0, Power ≥45W USB-A to C Charger Request - 5V only | |
Dimension | 144×100×35mm |
| Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C |
Net weight | Net 642g; With package 0.7kg |
MSRP
MSRP
MSRP
-

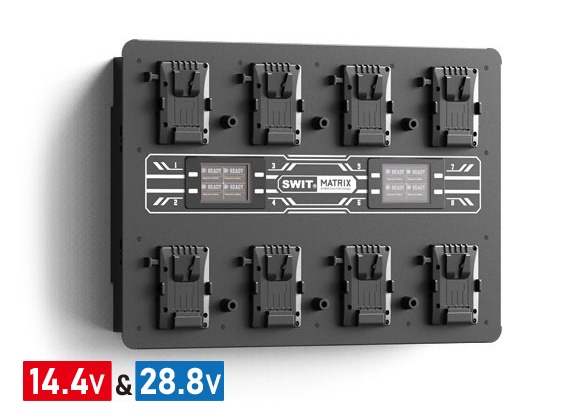

MATRIX-S8
